LINEAR WORKLIGHT 30" LENGTH SPOT PATTERN #93260
In stock — ready to ship

LINEAR WORKLIGHT 30" LENGTH SPOT PATTERN #93260

SKU #93260

$954.32

White emitting spot light with 12-24Vdc operation
Die cast zinc housing
Impact resistant polycarbonate front shield
IP68 rating
Tested to US MIL810-STD standard
CE and Rohs certified
Waterproof deutsch connector
Comes with wiring pigtail and wiring harness with switch
Comes with mounting bracket and stainless steel hardware
Available in spot, flood, and driving beam patterns

SKU
#93260
Availability
In Stock
View cart →

FEATURES

  • 12-24Vdc operation
  • Extruded aluminum
  • Impact resistant polycarbonate front shield
  • IP68 rating
  • Tested to US MIL810-STD standard
  • CE & Rohs certified
  • Waterproof deutsch connector
  • Wiring harness with switch and relay
  • Comes with mounting bracket and stainless
    steel hardware
  • Available in spot, flood, and combo
    beam patterns
  • These items are final sale and cannot be returned.
Part #VdcLumensAmps#LEDsBeam Pattern
93210 12-24 1430 0.8 4 Spot
93220 12-24 1736 1.2 8 Spot
93230 12-24 2604 1.8 12 Spot
93250 12-24 8680 6.0 40 Spot
93260 12-24 13020 9.0 60 Spot
93270 12-24 17360 12.0 80 Spot
93280 12-24 21700 15.0 100 Spot

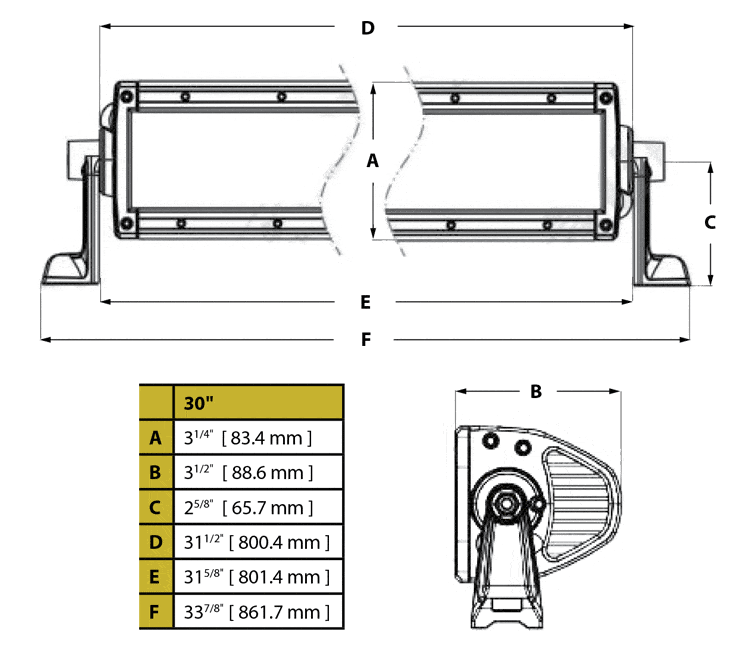

Dimensions & diagrams

Diagram
