BRITISH COLUMBIA AMBER SNOW PLOW #75033

SKU #75033

$3,820.04

This configuration was made for use in the Province of British Columbia
Package includes:

#S16362 – 1 Amber 16″ Slim Minibar – TX Front Mounted
#56045 – 4 Amber 24″ Warning Sticks
#93610 – 2 Amber Tractor/Spreader Light

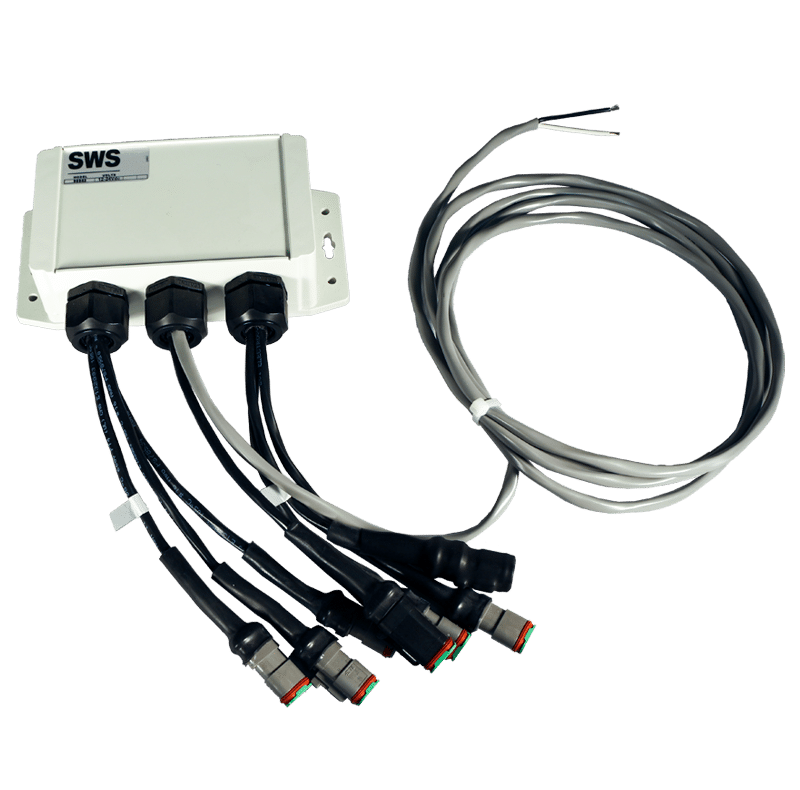

#96043 – 1 Junction Box BC Snow Plow Configuration

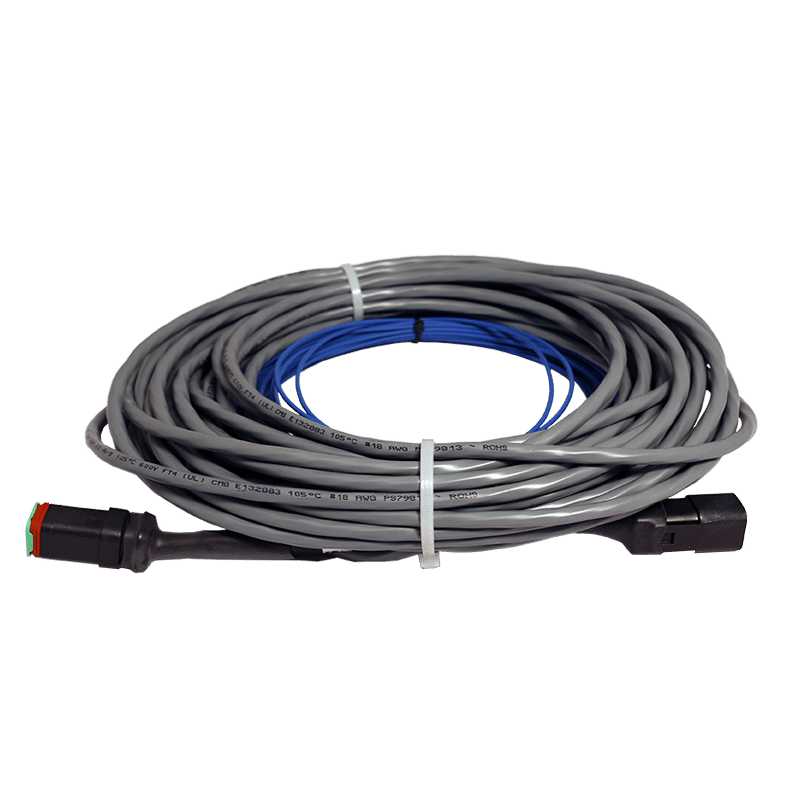

#722075 – 1 50 ft cable assembly for BC minibar

  • Powered by ArctiQ safety technology *
  • Metal end caps
  • -40°C cold rated cables
  • SAE Class 1
  • IP69K and IP67 LED modules
  • Potted electronics

* With ArctiQ technology by SWS, snow plow receiver beacons and minibars have the ability to take over the system in the event of a master failure and keep the lights on your plow flashing in sync. In the event of an issue with the communication line, ArctiQ SWS snow plow lights will continue flashing independently in a back up mode.

Note:
All extension cables sold separately. Customer to select desired length.
Customer to select checkerboard to suit application. Priced separately.
SKU
#75033
Availability
In Stock
View cart →

FEATURES

  • Meets or exceeds TAC Standards for Beacons, Minibars, and Warning Sticks
  • Meets MTO Standards ES-2410001, ES-2420001, & ES-2200012
  • Rugged, Durable aluminum and polycarbonate construction
  • Quick connection system for easy installation and winter/summer modification
  • Automatic ambient light photosensor for night time Dim mode
  • No bulbs or moving parts to fail
  • Other color combinations available
Part # Description Typical Installation Quantity Included in Package? Notes
S16362 16" Low Profile Mini lightbar Amber 1 Yes
96043 Main Junction Box 1 Yes
722075 50' Cable assembly for S16362 1 Yes
93610 Tractor/Spreader/Utility Amber Flasher 2 Yes
56045 24"Warning Stick Amber 4 Yes
93605 4" Red Stop/Tail/Turn Lights 2 No Required per TAC Standard. Optional Purchase
722068 10' Extension Cable: Device to Junction Box See Note No Customer to select cable lengths and quantity of each based on installation.
722069 20' Extension Cable: Device to Junction Box See Note No Customer to select cable lengths and quantity of each based on installation.
722070 30' Extension Cable: Device to Junction Box See Note No Customer to select cable lengths and quantity of each based on installation.
722071 40' Extension Cable: Device to Junction Box See Note No Customer to select cable lengths and quantity of each based on installation.
722072 50' Extension Cable: Device to Junction Box See Note No Customer to select cable lengths and quantity of each based on installation.
405002 3'x6' Retroreflective Checkerboard: "Liquid Anti-Icing" See Note No Customer to Select Board to suit application.
