In stock — ready to ship

NON-FREEWAY UTILITY TC12 SELECT ARROW BOARD #55010

SKU #55010

$1,827.41

  • SAE Class 1
  • IP67 & IP69K LED modules
  • 12Vdc
  • 3 year warranty
  • 12 Modules
  • Polycarbonate UV Protected
  • AutoDim
  • DT Style connectors
  • Anodized Aluminum with 3M retro reflective material
  • Magnetized arrow flaps
SKU
#55010
Availability
In Stock
View cart →

FEATURES

  • Anodized aluminum sheet metal body w/ 3M retroreflective material
  • 12 x LED lightheads which meet SAE J595 Class 1 & California Title 13
  • AutoDim photosensor for automatic nighttime dimming
  • Dual optic lens for short and long range
  • Floating 4” Automotive standard grommet installed light heads are easily removed and replaced
  • Gasket mounted light heads are vibration resistant
  • Flaps are held in place with magnets rather than failing mechanical clasps
  • Light heads are ultrasonically sealed making them completely water and moisture proof
  • Easy mount system, L-brackets mounting to 1/4-20 nut inserts in the body of the TC-12
  • Stainless steel hinges and hardware
  • IP67 & IP69K LED modules
  • 3 Years Warranty
Part # VDC Mounting Module Colour Amps Lumens Weight
55010 12.8 Permanent Amber 4.2A 4320 28lbs

Downloads

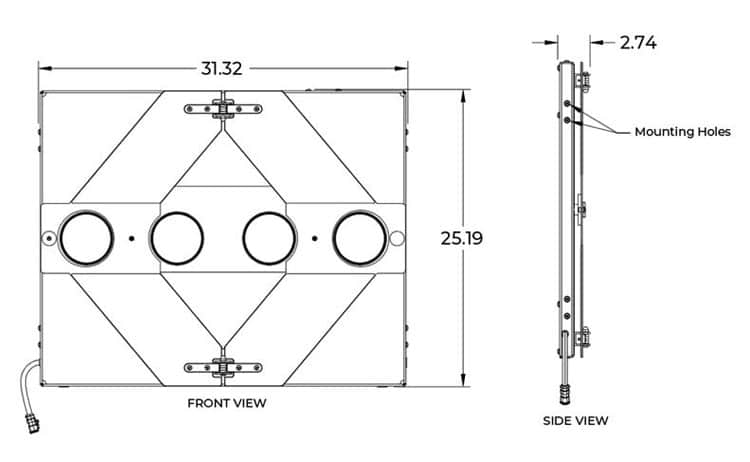

Dimensions & diagrams

DiagramDiagram
