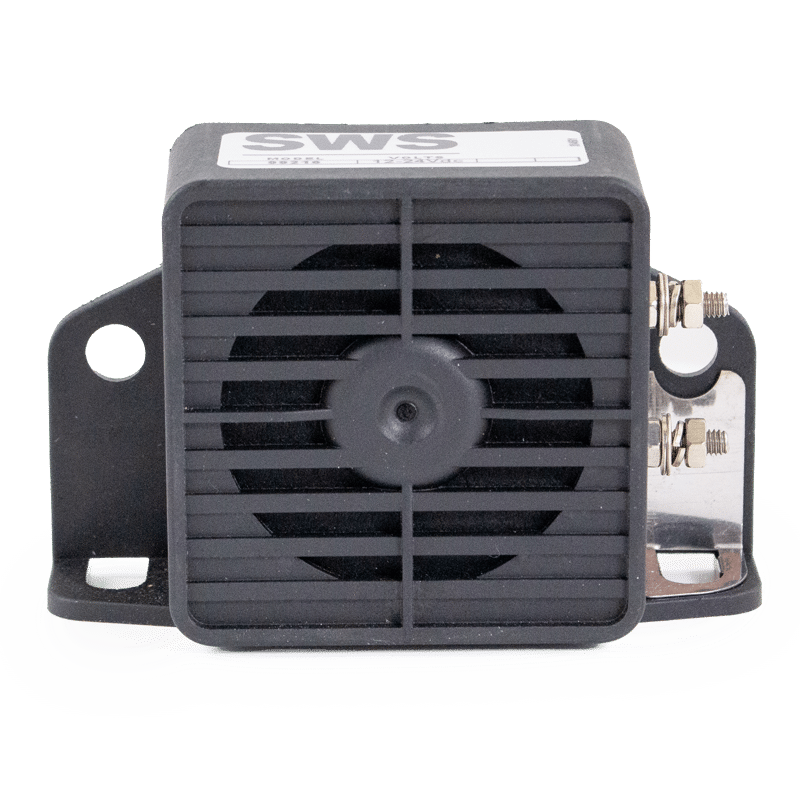

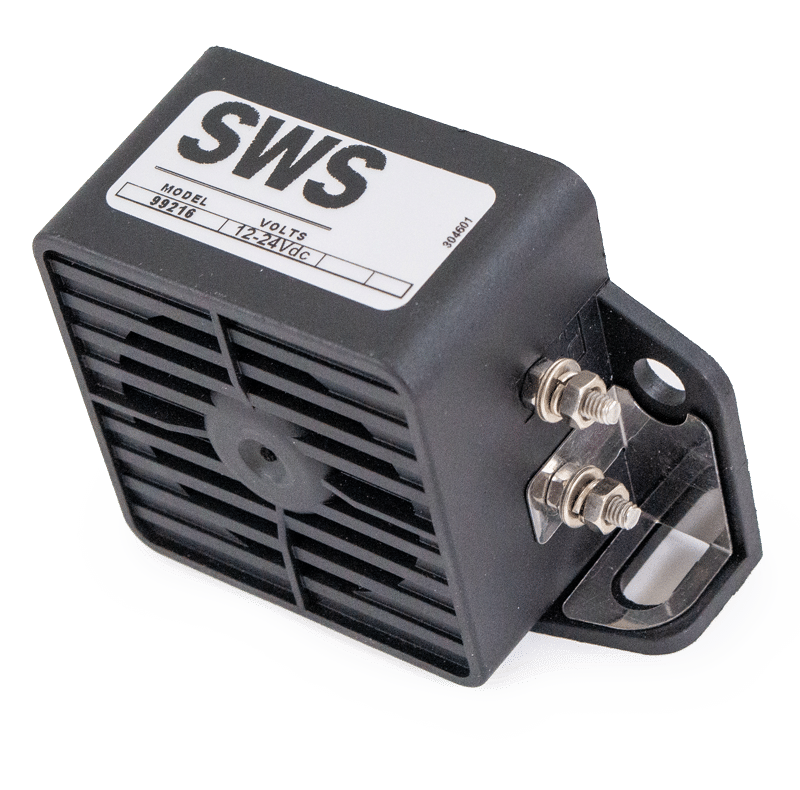

MULTI FREQUENCY BACKUP ALARM #99216

SKU #99216

$23.90

  • Multi Frequency (White Noise)
  • Operating Voltage 12-24 VDC
  • Nylon base with Potted Electronics
  • Water Resistant Speaker Cone
  • Operating Temp -30°C to +80°C
  • Dimensions 2.638” H x 4.02” W x 1.575“ D
  • 3 years warranty
SKU
#99216
Availability
In Stock
View cart →

FEATURES

  • Multi Frequency (White Noise)
  • Operating Voltage 12-24 VDC
  • Nylon base with Potted Electronics
  • Water Resistant Speaker Cone
  • Operating Temp -30°C to +80°C
  • Dimensions 2.638” H x 4.02” W x 1.575“ D
  • 3 years warranty
Part #AmpsdB RatingVdcDimension
60 0.2A 82-112dB 12-48 3.125” H x 4.5” W x 1.625” D
61 0.2A 107-112dB 12-48 4 7/8” H x 6 1/8” W x 2 5/8” D
99202 0.2A 97dB 12-24 2.625” H x 4” W x 1.625“ D
99216 0.2A 97dB 12-24 2.638” H x 4.02” W x 1.575“ D
99217 0.2A 97dB 12-80 2.83” H x 3.94” W x 1.57“ D
99218 0.2A 97dB 12-80 2.83” H x 3.94” W x 1.57“ D
Part #Housing MaterialSingle Tone dB LevelsDual Tone dB LevelsSteady Tone dB LevelsDimension
60 Die-cast Zinc 87, 97, 102, 107, 112 97, 102 107 3 1/16”H x 4 9/16”W x 2”D
61 Die-cast Zinc 107, 112 107, 112 107, 112 4 7/8”H x 6 1/8”W x 2 5/8”D
62 ABS 87, 97, 102, 107, 112 97, 102 107 3 1/16”H x 4 9/16”W x 2”D
99901 ABS 97 - - 3 1/16”H x 4 9/16”W x 3”D
Part #VdcAmpsMountingdB RatingSound TypeConnectivitySAE ClassDimensions
99202 12-24 0.2 Universal Mounting 97 Single Studs C 2 5/8” H x 4” W x 15/8“ D
99204 12-24 0.2 Permanent Mounting 97 Single Studs F 2 5/8"H x 4"W x 1 5/8"D
99205 12-24 1.2 Permanent Mounting 97 Single Studs B 2 5/8"H x 4"W x 1 5/8"D
99212 12-24 0.2 Universal Mounting 82 Multi Frequency Wire Leads F 2.64”H x 4.02”W x 1.6”D
99306 12-24 1.3 Permanent Mounting 87-112 Single Stud A 3 1/8"H x 5"W x 3 7/8"D
99309 12-24 0.9 Permanent Mounting 87-112 Dual Stud A-F 3 1/8"H x 5"W x 3 7/8"D
99600 12-24 0.2 Universal Mounting 97 Single Studs C 4.32” H x 4.32” W X 1.75” D
99602 12-48 0.2 Universal Mounting 97 Single Studs C 4.32” H x 4.32” W X 1.75” D
99702 12-36 0.2 Permanent Mounting 97-107-112 Single Studs C 4.32” H x 4.32” W X 1.75” D
99704 12-24 0.2 Permanent Mounting 102 Multi-Frequency Studs C 4.32” H x 4.32” W X 1.75” D

Sound samples

Downloads

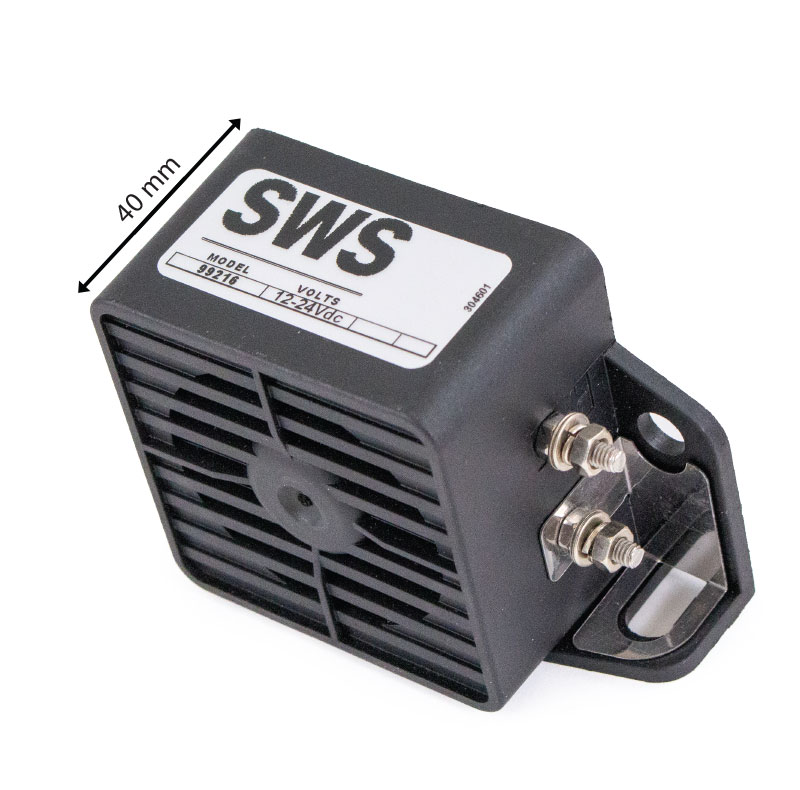

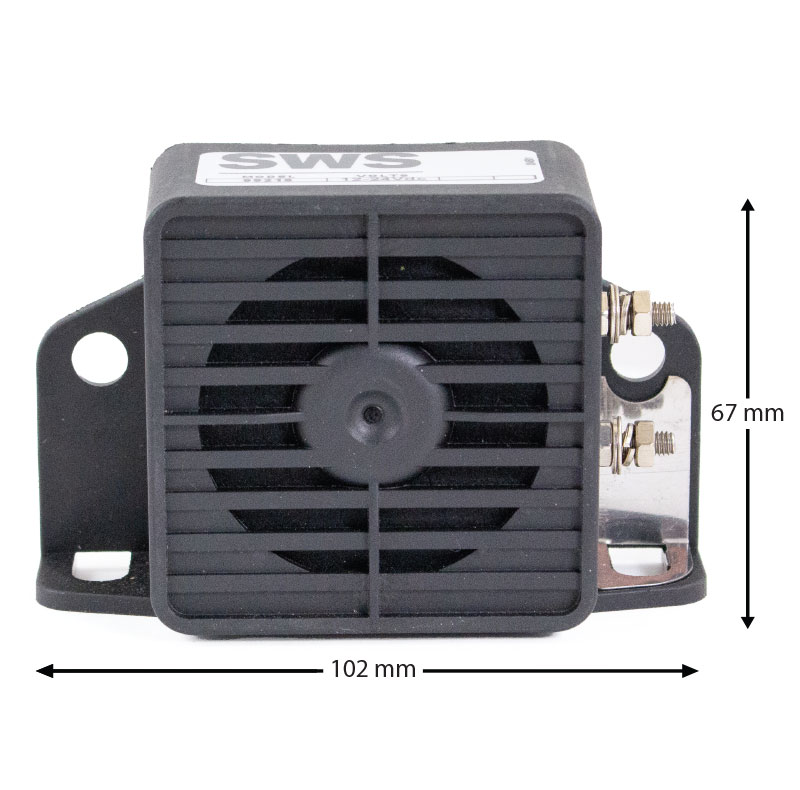

Dimensions & diagrams
